Male - Female Fiber Optic Attenuator Single Core 1 - 30dB Metal Material

J&K Optotec Co.,Ltd.
Contact Now

Male - Female Fiber Optic Attenuator Single Core 1 - 30dB Metal Material

  • 1
  • 2
  • 3

Brand Name : J&K

Model Number : SC UPC SM Attenuator

Place of Origin : SHENZHEN,CHINA

MOQ : 50PCS

Price : Negotiation

Payment Terms : L/C, T/T

Delivery Time : 3~5days

Packaging Details : PE bag

Wavelength : 1310/1550nm

Product name : fiber attenuator

Attenuation level range : 0~30dB

Attenuation range : 1~30dB

Operating Temperature : -40~85℃

Storage Temperature : -40~85℃

Contact Now

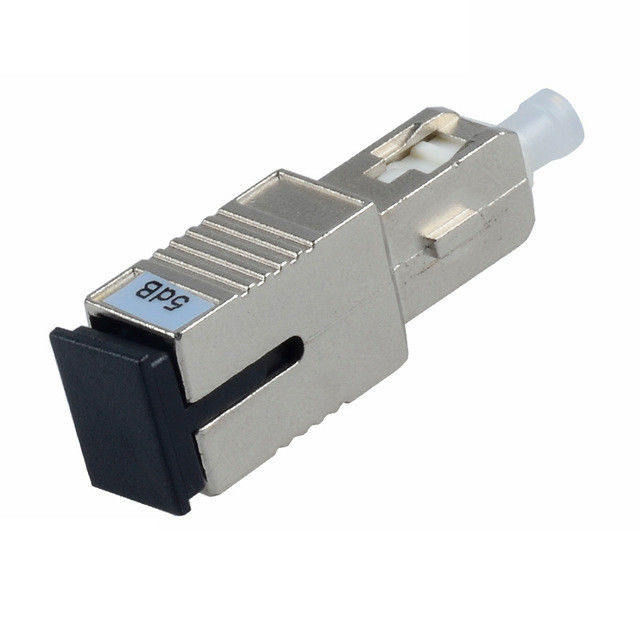

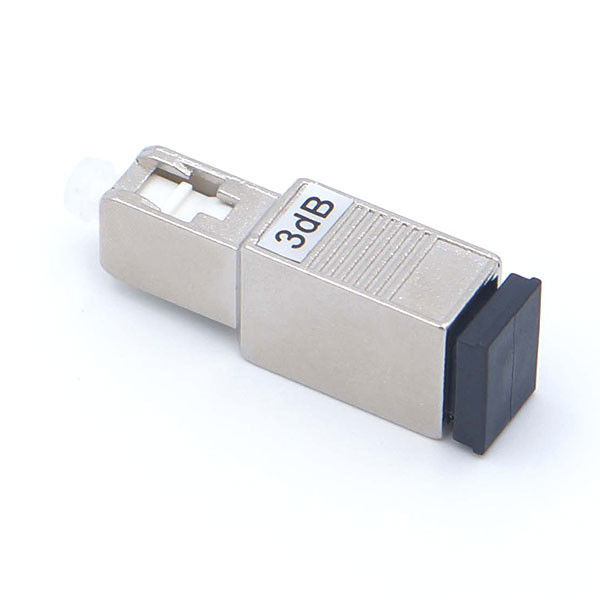

SC / UPC Singlemode Fixed Fiber Optic Attenuator, Male-Female, 1-30dB


Features





  • Low PDL and insertion loss
  • Precision polishing for reduced back reflection
  • Highly Reliable Physical Contact Connectors
  • Compartmentalized case provides safe component storage and simple organization
  • Small, durable case for easy portability

Applications

  • Wide-Area networks;
  • Telecommunication networks;
  • Gigabit applications (ATM, Ethernet).

Specifications



Parameters Min. Typical Max Unit
Operating Wavelength Range 1310 ± 40 nm
1550 ± 40 nm
Return Loss PC Type 50 dB
APC Type 65 dB
Operating Temperature -40   85 °C
Tolerance DB≤10 dB =±0.5&DB≥10 dB =±0.75
Storage Temperature -40   85 °C

Male - Female Fiber Optic Attenuator Single Core 1 - 30dB Metal MaterialMale - Female Fiber Optic Attenuator Single Core 1 - 30dB Metal Material
