FWDM T x 1550nmCWDM Mux Demux 20dB Metal Tube Isolation For Line Monitoring

Brand Name : J&K

Model Number : FWDM

Certification : UL; SGS; ROHS

Place of Origin : SHENZHEN,CHINA

MOQ : 10PCS

Price : Negotiation

Payment Terms : L/C, T/T

Delivery Time : 3~5days

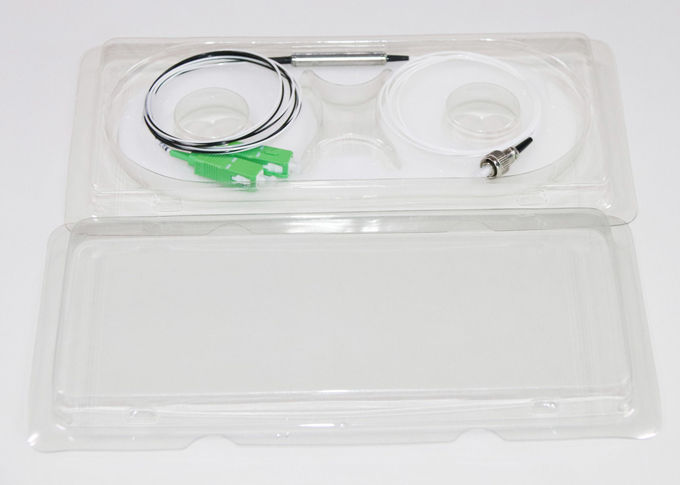

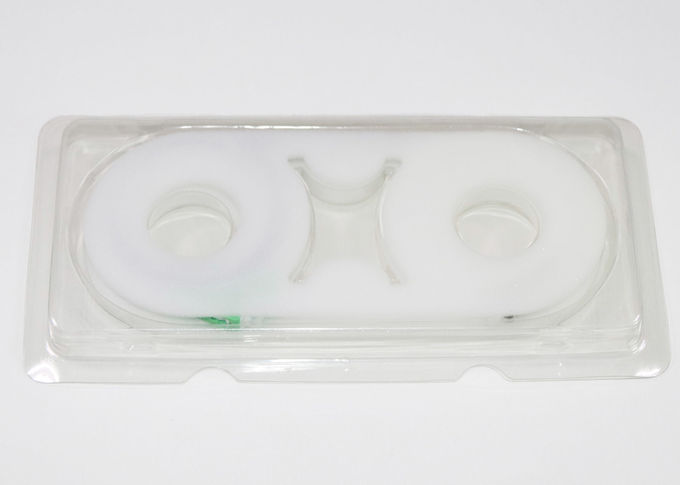

Packaging Details : Plastic Box

Max IL : ≤0.6dB

Return Loss dB : ≥60

Directivity dB : ≥55

Operating Temperature ℃ : -10~+70

Storage Temperature ℃ : -40~+85

Fiber Type : SM,9/125,900um

Contact Now

FWDM Tx1550nm RX1310/1490nm with metal tube Isolation >20dB

Sino Fibre Optic Co.,Ltd. is a manufacture company more than ten years,our factory locates at Shenzhe,it's dust-free.

We're specalize in fiber optic product manufacture,to help our customers get accurate products they want and dedicated pre-sales and after-sales services.

Applications:

Line monitoring
WDM system
Triple-Play FTTH
Telecommunication network system

Features:

Flat and wide bandwidth
Low insertion loss
High stability and reliability
high channel isolation
Epoxy-free optical path

Specifications:

Model		FWDM-1*2
Passband Central Wavelength nm		1550
Reflective Band Central Wavelength nm		1310&1490
Passband Wavelength nm		1530~1620
Reflective Band Wavelength nm		1260~1360&1450~1520
Insertion Loss	Transmission 1550nm dB	0.60
	Reflection 1310nm dB	0.40
	Reflection1490nm dB	0.40
Isolation	Transmission 1310nm dB	>50
	Transmission 1490nm dB	>35
	Reflection 1550nm dB	>20
PDL dB		≤0.1
Return Loss dB		≥60
Directivity dB		≥55
Fiber Length m		1.0
Operating Temperature ℃		-10~+70
Storage Temperature ℃		-40~+85
Dimensions mm		34*Ø5.5 & 90x20x10
Fiber Type		SM,9/125,900um
